Model N-713
3 - 7.5 HP

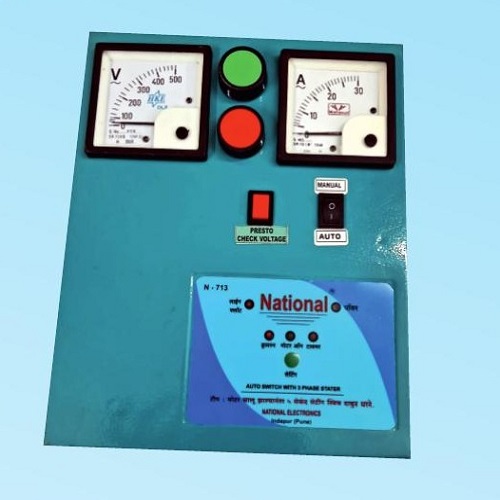

3 Phase Analogue Starter
3 Phase Analogue Starter
A microcontroller-based analogue starter panel with its own voltmeter and ammeter, MCB protection, and full timer / SPP / dry run / overload indication for openwell, submersible and monoblock pumpsets.
Model No.N-713
Capacity3 - 7.5 HP
Manufactured ByNational Electronics
Features
- Microcontroller based technology.
- Motor starts automatically after time delay of 1 / 3 / 5 min.
- Protection from voltage & current unbalance, single phasing, overload & dry run.
- Operates on low voltage (from 250V).
- Useful for 3 Ph. 1 to 6 H.P. Openwell, Submersible, monoblock pumpsets.
- Separate indications for timer, OK, SPP, dry run & O/L.
- Auto Manual facility.
- Single phasing protection up to motor terminal.
- 3-pole MCB for mains ON/OFF & short circuit protection.
Technical Specifications
| Operating Voltage | 220 to 460 VAC, 50Hz |
| Dry Run Trip Timing | 7 Sec |
| Overload Trip Timing | 2s to 20s (IDMT) |
| Dry Run Setting | 70% of full load current |
| Overload Setting | 130% of full load |
| Trip Time Delay | 4 Sec |
| Voltage Unbalance Set | 35 Volts |
| SPP Sensing | Current & Voltage |
| Capacity | 3 - 7.5 HP |
| Model | N-713 |
