Model N-706
3 - 30 HP

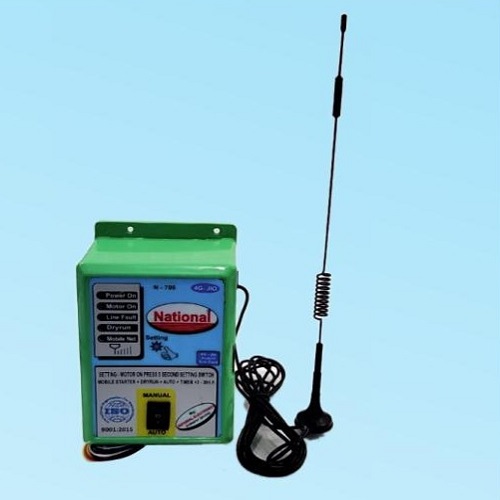

GSM Mobile Auto Switch
GSM Mobile Auto Switch
Control and monitor your motor remotely with GSM based mobile switching technology — simply insert a SIM card directly into the unit, no separate mobile handset required.
Model No.N-706
Capacity3 - 30 HP
Manufactured ByNational Electronics
Features
- Microcontroller based technology.
- Operates from 200V to 420V.
- Useful for 3 to 30 HP motors.
- Separate indicator for OK & Mobile ON.
- ON/OFF code & voice feedback details in instruction manual with unit.
- Protection from single phasing, dryrun.
- Separate indicator for OK, SPP, N/L.
- No need of a mobile handset.
- You can directly insert a SIM card into this unit.
Technical Specifications
| Operating Voltage | 220 to 460 VAC, 50Hz |
| Trip Time Delay | 4 sec |
| Star to Delta Time Delay | 7 Sec |
| Capacity | 3 - 30 HP |
| Model | N-706 |
