Model N-707
1 - 5 HP
1 Ph Submersible Starter (Analog)

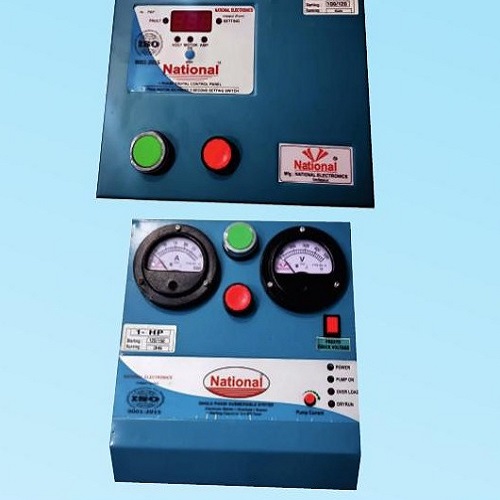

Single Phase Submersible Panel
An analog single-phase submersible starter panel with no-volt release, separate voltmeter/ammeter indication, and an available digital variant with continuous LED display of every reading.
Model No.N-707
Capacity1 - 5 HP
Manufactured ByNational Electronics
Features
- Microcontroller based technology.
- Suitable for submersible pumps.
- Available for 0.5 to 3 H.P. units.
- No Volt Release — automatically shuts off on failure of supply.
- Protection from O/L & Dryrun.
- Separate indicators & Voltmeter / Ammeter.
- Automatic push button for O/L and N/L setting.
- Digital variant (707-D): LED display for each protection & facility.
- Digital variant: Voltage & current shown continuously on LED display, one by one.
Technical Specifications
| Operating Voltage | 150 to 270 VAC, 50Hz |
| Dry Run Trip Timing | 7 Sec |
| Dry Run Setting | 70% of full load current |
| Trip Time Delay | 7 Sec |
| Capacity | 1 - 5 HP |
| Model | N-707 |
